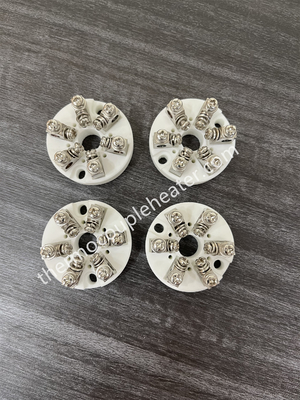

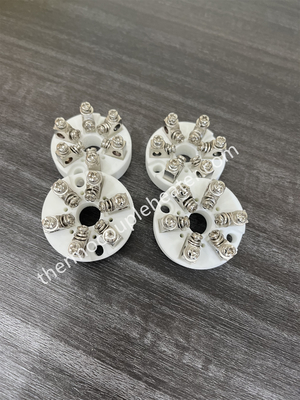

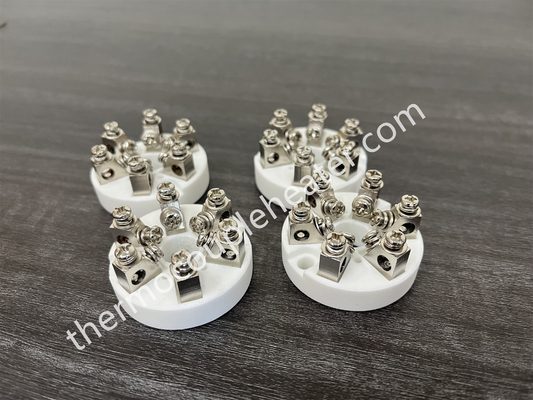

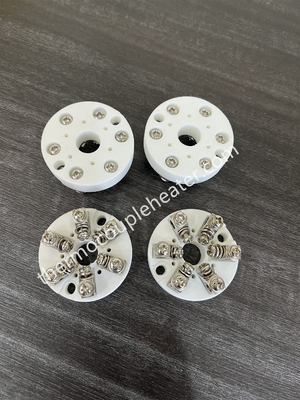

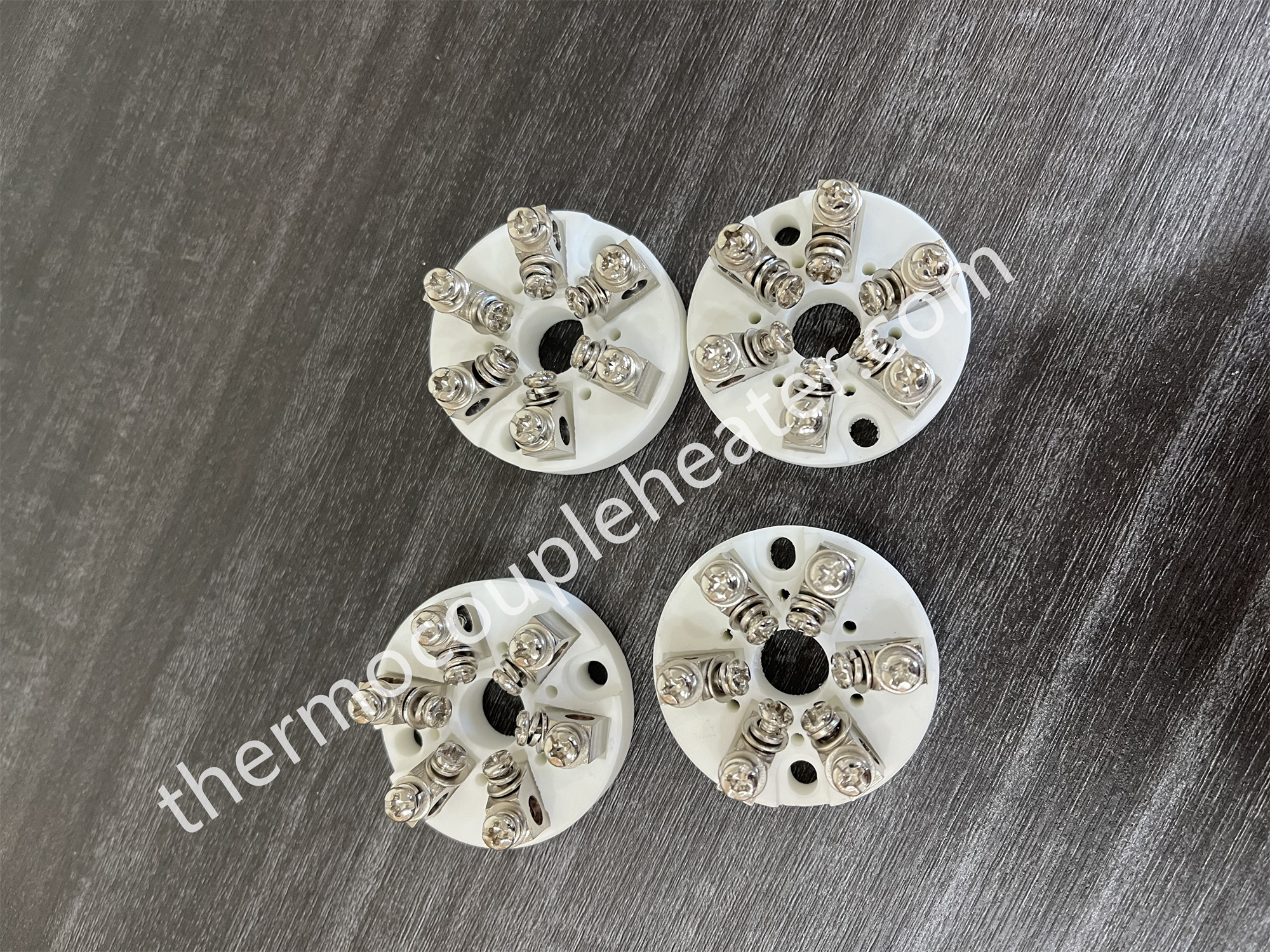

Ceramic Terminal Block For Thermocouple Head for KNE and KSE thermocouple head

Ceramic Terminal Block For Thermocouple Head for KNE and KSE thermocouple head

    • Ceramic Terminal Block For Thermocouple Head for KNE and KSE thermocouple head
    • Ceramic Terminal Block For Thermocouple Head for KNE and KSE thermocouple head
    • Ceramic Terminal Block For Thermocouple Head for KNE and KSE thermocouple head
    • Ceramic Terminal Block For Thermocouple Head for KNE and KSE thermocouple head
    • Ceramic Terminal Block For Thermocouple Head for KNE and KSE thermocouple head
  • Ceramic Terminal Block For Thermocouple Head for KNE and KSE thermocouple head

    Datos del producto:

    Lugar de origen: Porcelana
    Nombre de la marca: GME
    Certificación: CE

    Pago y Envío Términos:

    Cantidad de orden mínima: 50 por ciento
    Detalles de empaquetado: cartones, plataforma
    Tiempo de entrega: 7 a 10 días hábiles
    Condiciones de pago: T/T, Western Union, Moneygram, L/C
    Capacidad de la fuente: 100000 pcs por mes
    Contactar ahora
    Descripción detallada del producto
    Fuente de energía: Eléctrico Dimensión: personalizado
    Material de la vaina: Aleación de aluminio Grado a prueba de explosión: DIIBT1 ~ T6
    SUMINISTRAR: OEM Entrada del cable: M20*1.5M22*1.5,G1/2"
    Nivel de protección: IP 65 Uso: Industrial
    Resaltar:

    KSE Ceramic Terminal Block

    ,

    KNE Ceramic Terminal Block

    ,

    Thermocouple Head Ceramic Terminal Block

    Ceramic Terminal Block For Thermocouple Head for KNE and KSE thermocouple head





    Description:



    We are the very die-casting and mold factory that produce aluminum parts, zinc parts, plastic parts for all ranges. We have technical in outo parts, garden tools, safety belt parts, railway optical cable junction box, shell of temperature sensor, injection plastic parts, etc. And we focus on offering aluminum thermocouple heads together with the ceramic blocks.







    Specification:



    property
    • Terminal block: ceramic,bakelite material
    • Available models: KNE, KSE, KB, DAN, NAA, TL, TS etc.
    • Mounting holes distance: 40mm, 36mm, 33mm, etc.
    • Ceramic material: talc powder& olefin, 92%Al2O3,99%Al2O3
    • Color:White and balck
    • Terminal material:nickel coated brass
    • Screw material: stainless steel, nickel coated iron
    • Number of pins:2,3,4,6,8 etc



    item
    value
    Place of Origin
    China


    Model Number
    D-3P-C
    Number of Contacts
    3P
    Type
    ceramic terminal block
    Terminals
    3 poles
    Material for terminals
    brass
    Product name
    ceramic terminal block
    Color
    White
    Material for block
    Ceramic
    Material of screw
    Stainless steel
    Usage
    Industry Usage
    Industry Usage
    33 mm
    Application
    thermocouple parts
    Type
    D-3P-C



    Ceramic Terminal Block For Thermocouple Head for KNE and KSE thermocouple head
