| Lugar de origen: | Porcelana |
| Nombre de la marca: | GME |
| Certificación: | CE |
| Cantidad de orden mínima: | 50 por ciento |
|---|---|
| Detalles de empaquetado: | cartones, plataforma |
| Tiempo de entrega: | 7 a 10 días hábiles |
| Condiciones de pago: | T/T, Western Union, Moneygram, L/C |
| Capacidad de la fuente: | 100000 pcs por mes |
| Fuente de energía: | Eléctrico | Dimensión: | personalizado |
|---|---|---|---|
| Voltaje: | 110-240V / 50-60Hz | Garantía: | Un año |
| Fuerza: | 195W-690W | Estilo: | recto o bobina |
| Material de calefacción del alambre:: | Cr20Ni80 | Esquema que arrolla: | Salidas tangenciales, radiales, axiales |
| Material: | Acero de cobre amarillo o inoxidable | Color: | Cobre |
| Aplicación: | Ampliamente utilizado | Altura: | 10 mm ~ 200 mm |
| Resaltar: | Nozzle Spring Heating Ring,hot runner heating spring heating ring,Injection Molding Machine Spring Heating Ring |
||

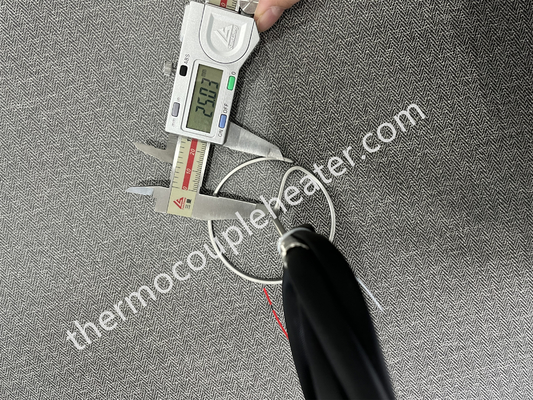

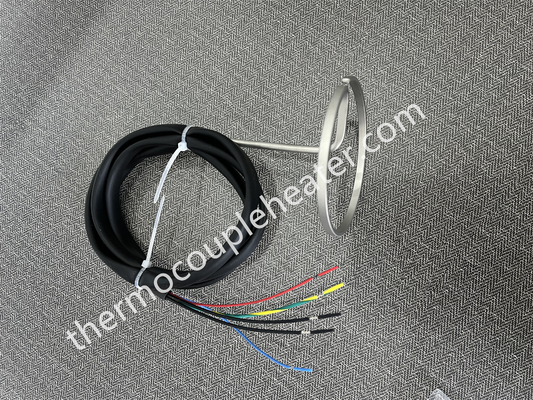

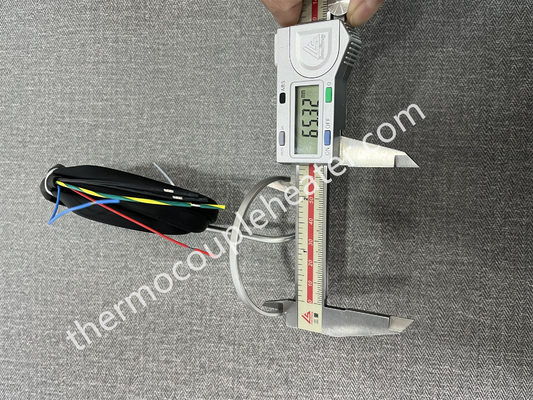

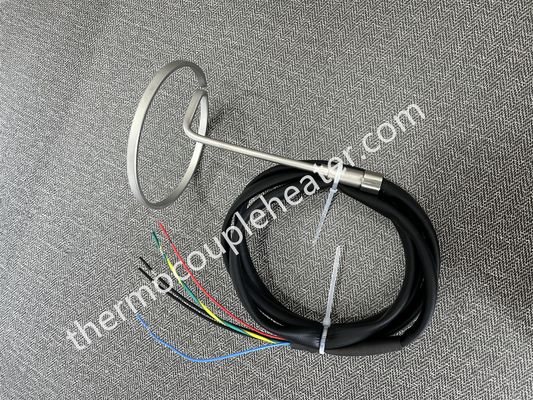

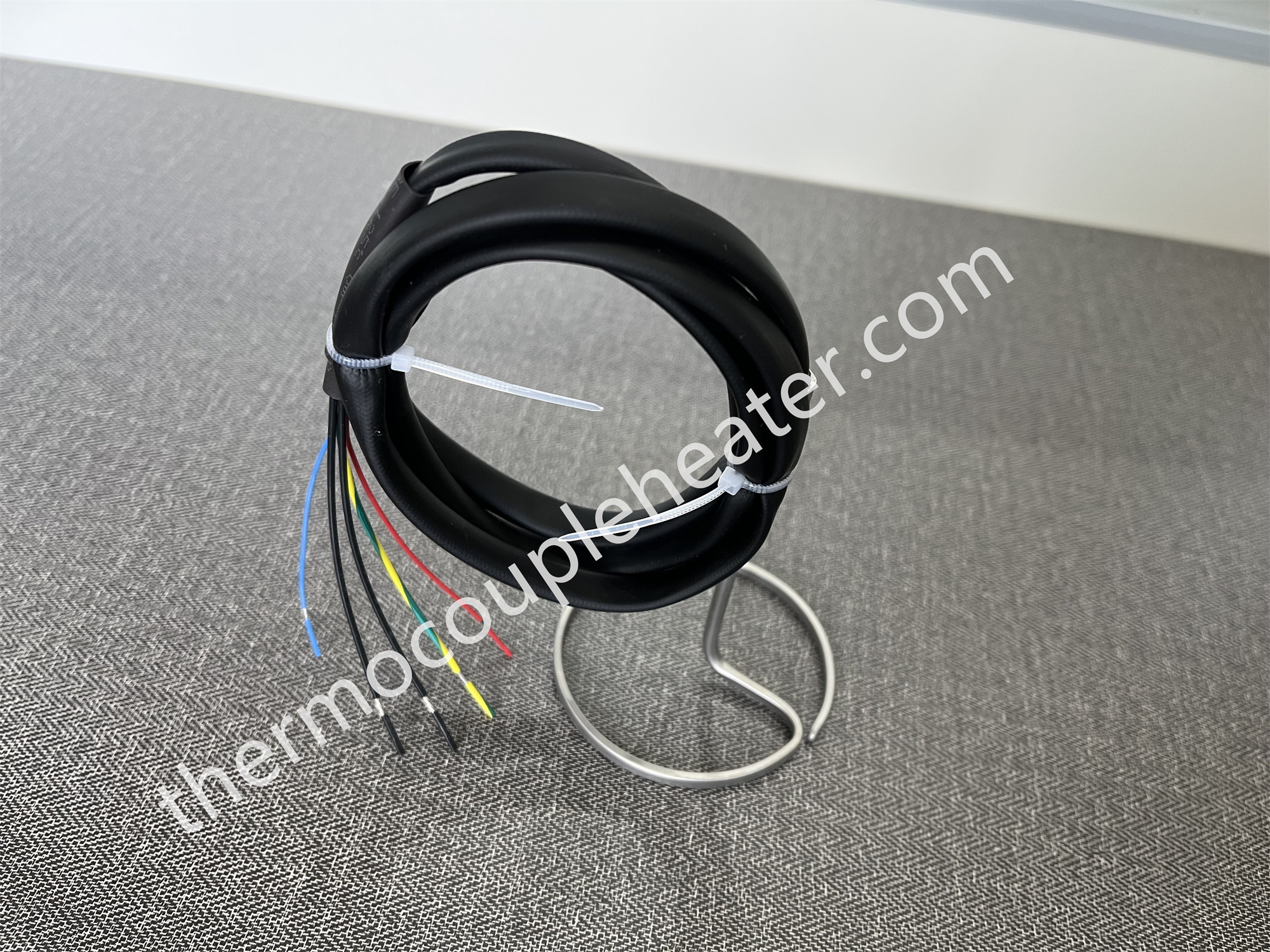

1) Hot runner coil heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The heaters are annealed to acquire malleability for bending into any shape.
2) Hot runner heaters with built in thermocouple are also available. Hot runner bushes are produced with hot runner heaters of different cross section with inner brass and outer stainless steel cover.
Specification:
1. Flexible cold section
2. Higher watt density than a cable heater
3. Resistance wire centered for more repeatable heat profile
4. Sealed transition head for moisture resistant applications available
Application:
1.Injection molding machine nozzle
2. Hot Runner Nozzles & Bushings
3. Packaging machinery
4. Hot runner Injection Molds
5. Injection & Blow Moulding Machine Nozzles
6. PET preform & Thin wall container Moulds
7. Hot runner Manifolds
