| Lugar de origen: | Porcelana |
| Nombre de la marca: | GME |
| Certificación: | ISO/CE/UL/CSA |
| Cantidad de orden mínima: | 50 por ciento |
|---|---|
| Precio: | USD 1-100 FOB Shanghai/pc |
| Detalles de empaquetado: | Cajas o cartones de madera |
| Tiempo de entrega: | 7-15 días de trabajo |
| Condiciones de pago: | D/A, D/P, T/T, Western Union, MoneyGram, L/C |
| Capacidad de la fuente: | 10000pcs/mes |
| Alambre de plomo: | silicio, fibra de vidrio | Material de Shealth: | SS304, SS321, SS316 |
|---|---|---|---|
| Color: | Biack y blanco | Tolerancia de los vatios: | +5%, -10% |
| Aplicación: | Aceite, agua u otro líquido, etc. | Fuente de energía: | Eléctrico |
| Voltaje: | 12-480V | Dimensión (L*W*H): | Personalizable |
| Tipo: | Calentador de aire, calentadores de Cartidge | Aislamiento: | Polvo del Mgo |
| Resaltar: | Cartridge Heater With Metal Mesh,Flange plate Cartridge Heater,Cartridge Heater With flange plate |
||

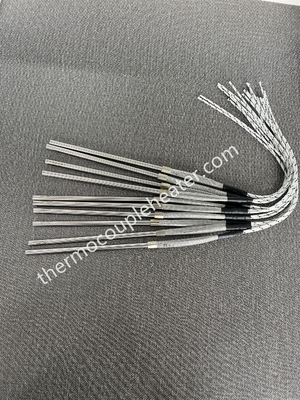

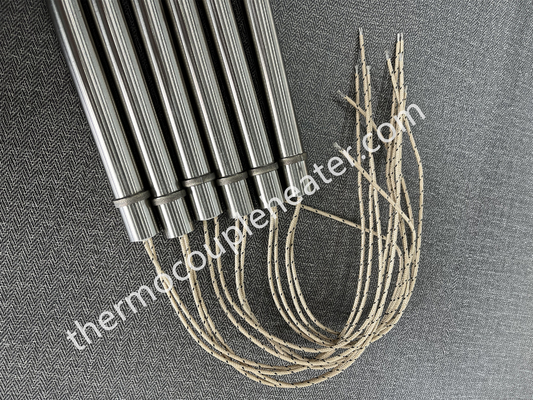

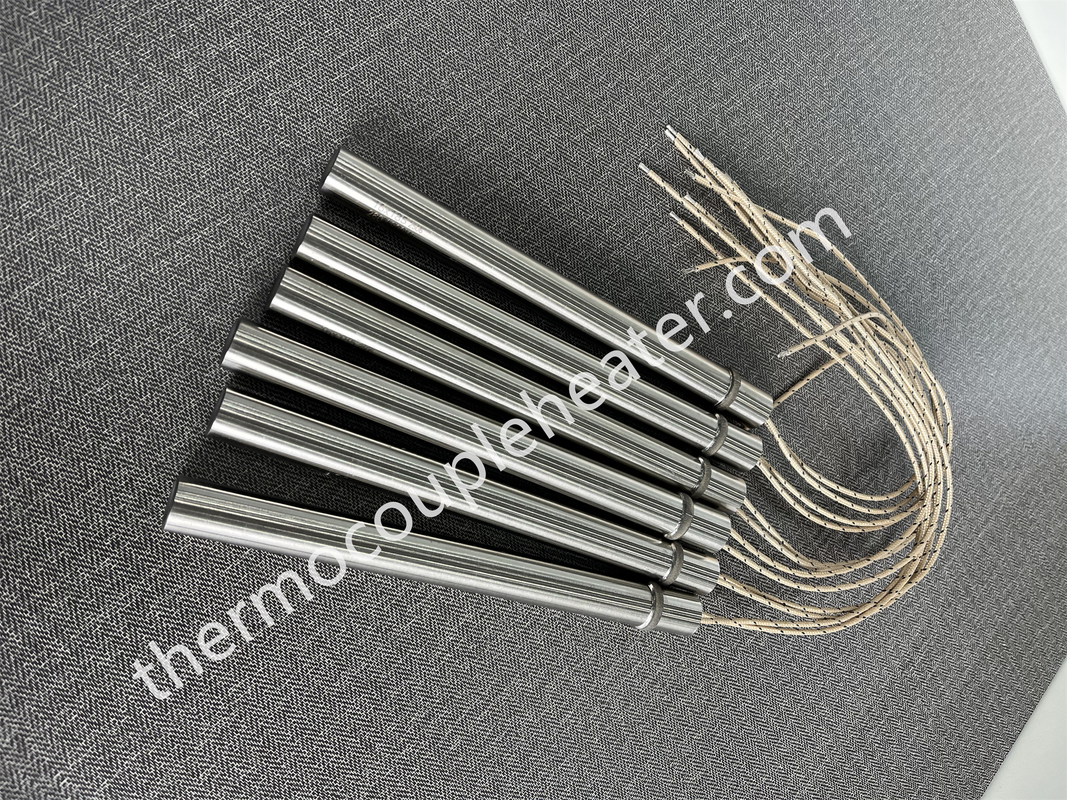

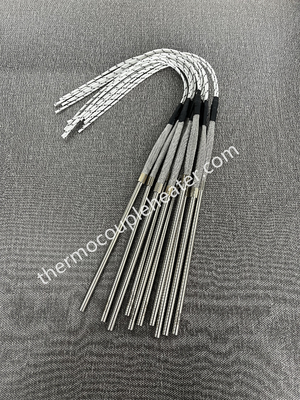

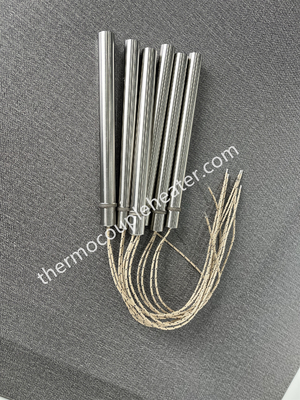

Cartridge Heater in Electric Cartridge Heater With flange plate and metal mesh
Description:
Cartridge heaters are an extraordinarily versatile and durable product that is used to heat a myriad of different processes from heavy industrial – plastics and packaging applications to critical care medical devices and analytical test instruments to being used on aircrafts, railcars and trucks. Cartridge heaters are capable of operating at temperatures of up to 750℃ and achieving watt densities of up to 30 watts per square centimeter. Available from stock or custom manufactured to your individual application need, they are available in many different imperial and metric diameters and lengths with many different style terminations, wattage and voltage ratings.
Cartridge heaters are an excellent choice to use as a conductive source for heating solid metal plates, blocks and dies or as a convective heat source for use in a variety of liquids and gases. Cartridge heaters can be used in a vacuum atmosphere with proper design guidelines.
Specification:
Internal wiring port section of the heating tube does not adopt the terminal connection mode,
Making it havhigh temperature resistance and strong mechanical properties.
The port part of the heating tube adopts terminal connection mode Is resistant to
high temperature and works in the heating medium which can not conduct wiring at both ends.
1. Operating conditions: ambient temperature-20℃ ~ + 60℃, relative temperature <80%;
2. Electrical strength: cold withstand voltage AC work 1500V 50Hz lasts for 1 min without breakdown phenomenon;
3. Thermal insulation performance: AC 1000V 50Hz lasts for 1 min without breakdown phenomenon;
4. Leakage current <0.5MA; Insulation resistance> 30MΩ;
Date sheets
| Resistance heating wire | NiCr 80/20 wire |
| Wattage Tolerance | +5%, -10% |
| Resistance tolerance | +10%, -5% |
| Length tolerance | ±1 mm |
| Diameter tolerance | -0.02mm |
| Standard Cold Zone | 5-10mm |
| Insulation resistance (cold) | ≥ 500 MΩ |
| Maximum leakage current (cold) | ≤ 0.5 mA |
| Thermocouple Location | type J / K / Ground wire |
Application:
* 3D Printers
* Hot runner systems - Heating of manifolds
* Laboratories - Heating of analytical equipment
* PCB Equipment, Smokeless barbecue furnace
* Glass Bending Machine, Hole Punched
* Injection Molding
