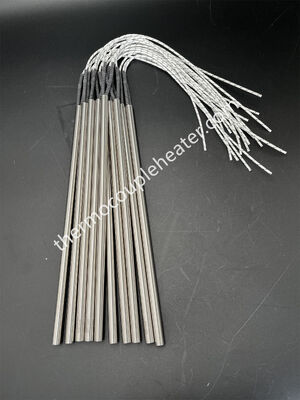

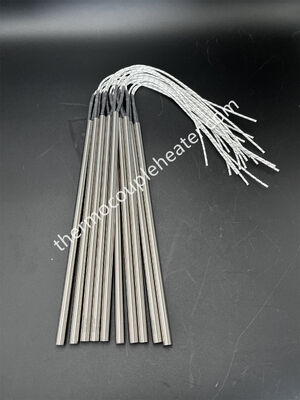

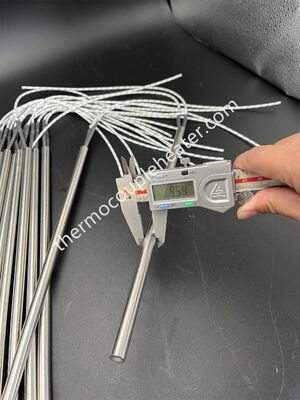

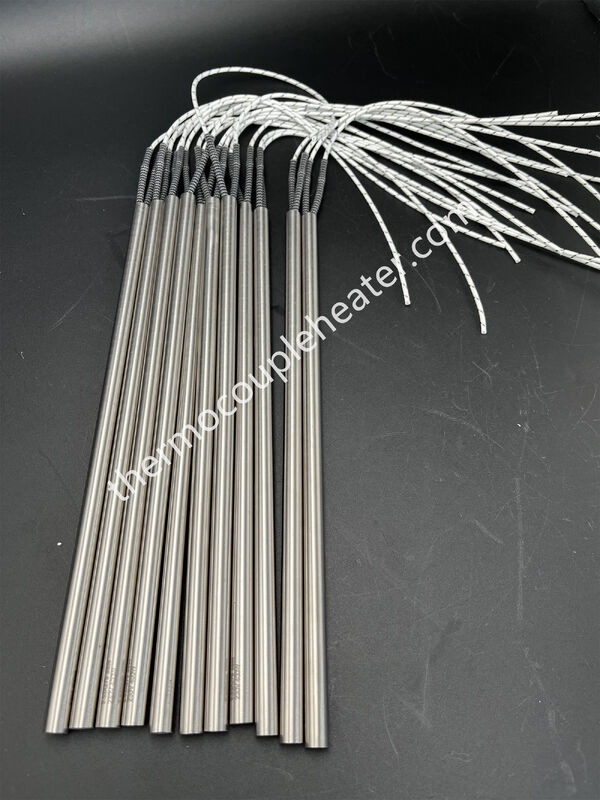

Stainless Steel Industrial Electric Rod Resistance Heating Element Cartridge Heater

Stainless Steel Industrial Electric Rod Resistance Heating Element Cartridge Heater
Stainless Steel Industrial Electric Rod Resistance Heating Element Cartridge Heater Stainless Steel Industrial Electric Rod Resistance Heating Element Cartridge Heater Stainless Steel Industrial Electric Rod Resistance Heating Element Cartridge Heater Stainless Steel Industrial Electric Rod Resistance Heating Element Cartridge Heater

Ampliación de imagen :  Stainless Steel Industrial Electric Rod Resistance Heating Element Cartridge Heater

Datos del producto:
Lugar de origen: Porcelana
Nombre de la marca: GME
Certificación: ISO/CE/UL/CSA
Pago y Envío Términos:
Cantidad de orden mínima: 50 piezas
Precio: USD 1-100 FOB Shanghai/pc
Detalles de empaquetado: Cajas o cartones de madera
Tiempo de entrega: 7-15 días laborables
Condiciones de pago: D/A, D/P, T/T, Western Union, MoneyGram, L/C
Capacidad de la fuente: 10000 unidades/mes
Descripción detallada del producto
Cable conductor: silicio, fibra de vidrio Material de Shealth: SS304, SS321, SS316
Color: Biack y blanco Tolerancia de los vatios: +5%, -10%
Solicitud: Aceite, agua u otro líquido, etc. Fuente de energía: Eléctrico
Voltaje: 12-480V dimensión (largo*ancho*alto): Personalizable
Tipo: Calentador de aire, calentadores de Cartidge Aislamiento: Polvo del Mgo
Resaltar:

Stainless steel cartridge heater

,

Industrial electric rod heater

,

Resistance heating element cartridge

Stainless Steel Industrial Electric Rod Resistance Heating Element Cartridge Heater



Description:


Cartridge heater is made of single head, electric heating tube to tube is to protect the shell (including not only the head of the stainless steel electric heating tube, copper pipe, all kinds of imported steel), along the central axis uniform spiral tube of high quality electric thermal bonding wire, nickel chromium wire, iron chromium alloy fever), and then fill the gap part closely with good heat resistance, thermal conductivity and the crystallization of the insulation of magnesia powder, with silicone seal on both ends of the pipe, in the other process.






Specification:



A.Nickel chromium resistance wire ensures even, efficient distribution of heat to sheath.


B.Magnesium oxide insulation of specific grain and purity results in high dielectric strength and faster heat-up.



C.According to different use requirements,choose the grade of heating wire,magnesium rod and
pipe.

D.Do not pull or bend the wire forciby.

E.The vicinty of the wire should be controlled below 220℃.


Product Name
right angle cartridge heater
Material
stainless steel
Color
nickel white
Standard
CE/ISO
Grade
SUS201, SUS304, SUS316,
Power
electric
Voltage

customized

Used
air heater,water heater



Application:



* 3D Printers
* Hot runner systems - Heating of manifolds
* Laboratories - Heating of analytical equipment
* PCB Equipment, Smokeless barbecue furnace
* Glass Bending Machine, Hole Punched
* Injection Molding
